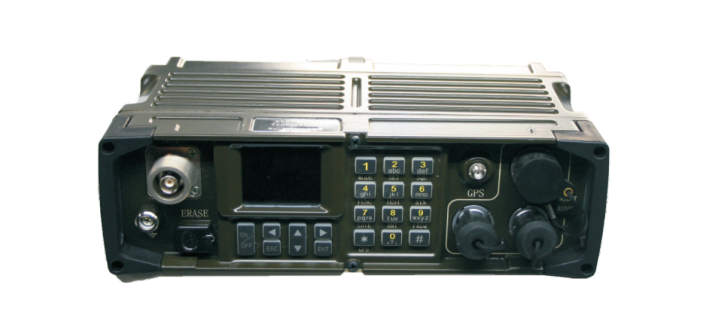

PRC-1005型高速超短波跳频电台是一种背负使用的电台。
电台具有中高速跳频体制和空闲信道搜索(FCS)工作模式，抗干扰体制更加适应数据传输和组网应用要
求，全面提升了电台的抗干扰能力和抗检测能力；具有数据传输和组网功能，用户速率为1.2kbps、
2.4kbps、4.8kbps、9.6kbps、19.2kbps、38.4kbps，信息以网络形式传输和利用，提高信息传输的有效性
和作战能力；具有数话同传等功能，提高了话音和数据业务的综合保障能力；提高了电磁兼容指标，满足多部
电台工作的使用要求；在手持终端或便携计算机的支持下，可以进行数据文件的传输。
适合各军兵种在背负下使用，在中等起伏地形条件下，通信距离10km左右。
Model PRC-1005 High Speed VHF Hopping Frequency Transceiver is manpack.Transceiver
The radio set can operate in high speed hopping frequency modes and free channel searching
mode, the anti-jamming system is suitable for data transmission and network establishment
application, which fully increase the anti-jamming and anti-interception capability. It has data
transmission and network establishment function, the user data rate is 1.2kbps, 2.4kbps, 4.8kbps,
9.6kbps, 19.2kbps, and 38.4kbps, the data is transmitted and utilized in network type, thus highly
increasing the transmission validity and campaign capability. It has the function of voice/data
simultaneous transmission, which increase the integrated guarantee capability for both voice and
data operation.Several sets of radio set can be operated in one vehicle based on the advanced
electro-magnetic compatible performances. Data transmission can be performed when connected
with handheld data terminal or PC.
The radio set can be used as manpack radio set in different environments by different troons. The
communication distance is about 10km under middle fluctuant terrain.
工作频段：30MHz~87.975MHz
•Operation frequency band: 30~87.975MHz
•频率间隔：25kHz
•Channel space: 25KHz
•信道间隔：2320
•Channel number: 2320
•预置波道数：20
•Preset channel number: 20
•工作模式：模拟话音、定频数字话音、
Operation mode: analog voice, digital voice in fixed
跳频数字话音、定频/跳频数据传输。
frequency and hopping frequency,
• 可靠性MTBF(02)：1250h
data transmission in fixed and hopping frequency.
•可维修性(MTTR)：30min
•MTBF(02)：1250h
•电源：
DC 12V~17V
•MTTR: 30min
•电台体积：256mm×76mm×139mm
• Power supply: DC 12V~17V
•Dimensions: 256mm×76mm×139mm
•电台重量：3kg
Weight: 3kg
1) 具有抗干扰通信功能，通过跳频、FCS等抗干扰手段的综合应用，在恶劣电磁环境下保证可靠快速
的信息传输；
2) 具有高速数据传输能力，数据传输速率可达38.4kbps;
3)具有数话同传等功能；
4) 具有数据组网通信功能，能够以分布式自组织方式组成具有自动中继转发能力的数据通信网；
5)具有迟后入网功能；具有广播、点-点轮循、TDMA等多址接入方式；
6) 具有良好的电磁兼容性能，满足同频段和不同频段多部无线通信设备同址工作需求
7) 具有安全保密通信功能，电台可内置保密机对所传输的数字信息进行加密，并能够快速销毁所有
通信参数；
8） 可以通过程序注入方式升级系统内软件，包括功能软件、跳频图案和加密算法；
9) 具备自动故障诊断和快速维修功能，电台具备模块级自检功能，具有便于拆装的模块化结构设
计；
10） 系统软件采用模块化设计，采用标准的软件开发平台，提供软件测试接口，便于进行软件评测；
11)具有150Hz导频静噪功能，具有静噪开、静噪关等工作方式；
12) 具有以太网和串行数据接口, 可与其它系统及计算机等进行连接通信。具有遥控功能，可通过终端
实现对电台的遥控。
1)Having anti-jamming communication capability. The integrated application of hopping frequency and
FCS enable the reliable and rapidly information transmission under badly electromagnetic environments.
2)Having high rate data transmission capability, the data rate can reach to 38.4kbps.
3)Having the function of simultaneous data and voice transmission.
4)Having the function of data network establishment, the data communication network with automatic
retransmission capability can be formed in distributing PRN mode.
5)Having the function of late entry the network; having accessing mode of broadcast, point to point cycling
in turn, and TDMA multiple address access.
6)Perfect electromagnetic compatibility, fulfilling the requirements of several radio sets in same band and
different band working in same place.
7)Having encryption function, built-in encryption module enable encryption communication for digital inf-
ormation, and capable of erase all the communication parameters rapidly without power on the radio set,
8)The system software can be updated by loading the program, including functional software, hopping
frequency pattern and encryption algorithm.
9)Having the function of automatic faults diagnosis and fast maintenance, self test up to modules, the
module structure is convenient for disassembling.
10)The system adopts modularization design, standard software developing platform, supplying software
testing interface, which is convenient for software evaluation.
11)Having 150Hz pilot squelch function, having the operation mode of squelch on and off.
12)With Ethernet and serial data interface, connecting with other radio system or computer for data
communication. Remote control function enables the control to the radio form the remote terminal.
