概述GENERAL

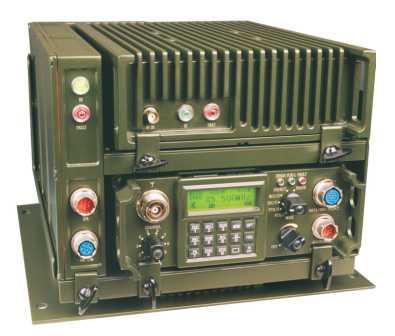

PRC-2189型车载超短波跳频电台由PRC-2188型背负式超短波跳频电台、50W功率放大器、车载安装架
和车载中馈天线等组成。可安装在坦克、装甲车、炮兵自行武器、武装直升机以及海军舰艇上，进行话音通信
和数据传输。能有效的实现定频通信、定频加密通信和跳频通信，并具有多部电台组网能力。能有效保障在电
磁干扰环境下，迅速、准确、可靠的通信联络，满足机械化部队和军队现代化作战的需要。
该电台具有跳频、保密、数传、遥控、转信等功能。
PRC-2189 Vehicle-borne VHF Hopping-Frequency Transceiver consists of PRC-2188 man-
pack VHF hopping frequency transceiver, a 50W power amplifier, a vehicle-borne mounting
bracket and a center-fed antenna. It can be installed in tank, armored vehicle, mobile artillery,
armed helicopter and navy ship to perform voice communication and data transmission. Fixed
frequency communication, fixed frequency encrypted communication as well as hopping frequency
communication can be accomplished effectively with it. It can be grouped in a network with other
transceivers. It can ensure fast, accurate, and reliable communication under electromagnetic
interference and meet the requirements of mechanical army and modern battle.
It has the functions of frequency hopping, security, data transmission, remote control and
retransmission.
主要指标 Main Specifications
1整机性能
1 Specifications of the transceiver
频率范围：30~87.975MHz
Frequency range:30~87.975MHz
波道间隔：25KHz
Channel spacing: 25KHz
波道数：
2320
Channels:2320
工作方式：
Operation mode:
定频模拟明话
Fixed frequency clear voice;
Fixed frequency secure voice:
定频数字密话
Hopping frequency clear/secure voice;
跳频数字明话、密话
Fixed frequency data transmission;
定频数传
Hopping frequency data transmission.
跳频数传
Preset channels: 10
预置波道数：10个
Antenna: 3m vchiclc-borne broadband center-feeding
天线：
3m车载宽带中馈天线
antenna
电源电压：额定电压DC26V，
Power voltage:DC 26V (rated), allowed variation:
允许变化范围22~30V
22-30V
外型尺寸：
Dimensions:
270 mm(W)×260 mm(D)×220 mm(H)
270 mm(W)×260mm(D)×220mm(H)
重量：
17.5kg
Weight： 17.5kg
2 发信机性能
Specifications of the transmitter
Modulated deviation:
调制频偏：模拟话 5.6KHz±1KHz
Rated deviation for analog voice: 5.6±1KH2
数字话 7KHz±1KHz
Rated deviation for digital voice: 7±1KHz
导 频 3KHz± 1KHz
Pilot tone deviation:3±1KHz
导频频率：150Hz±2Hz
Pilot tone frequency: 150Hz±2Hz
Tx power: 50W±1.5dB (high power)
•发信功率：大功率50W±1.5dB
10W±1.5dB(medium power)
中功率10W±1.5dB
2W±1.5dB(low power)
小功率2W±1.5dB
Frequency stability:±3×10-
Frequency error:±500Hz
频率误差：±500Hz
3 Specifications of the receiver
频率稳定率：±3×10
•Rx sensitivity:0.35μV(S+N/N=12dB.
3 接收机性能
• Audio output: Earphone: 50mW(6002)(max)
收信灵敏度：0.35μV(S+N/N=12dB)
• Speaker: 1W (8Q)
•音频输出：最大50mW(6002)(max)
• Intercom:220mV(6002)
•扬声器：
1W (8Q)
Audio distortion;5%
车通：
220mV (6002)
•Audio response: Variation related to 1kHz is less than
音频失真：55%
6dB in the frequency range of 300~3000Hz
•音频响应：300~3000Hz，相对于1KHz变化
• IF rejection:≥80dB
小于6dB
• Image rejection: ≥70dB
中频抑制：≥80dB
4 Frequency Hopping, Encryption and Data
像频抑制：=70dB
Transmission Performances
4 跳频性能
Frequency hopping rate:500hops/s
跳频速率：500 hops/s
•Frequency hopping bandwidth:hopping in full band or
跳频带宽：可全频段跳，也可分频段跳
in section band
•语音编码方式：CVSD/MELP
Voice coding mode:CVSD/MELP
•话音数据率：CVSD 16Kbits/s;MELP 2400bits/s
Voice coding rate: CVSD 16Kbits/s; MELP 2400bits/s
•速率：19200/9600/4800/2400/1200/600bps
Rate:19200/9600/4800/2400/ 1200/600bps
