概述 GENERAL

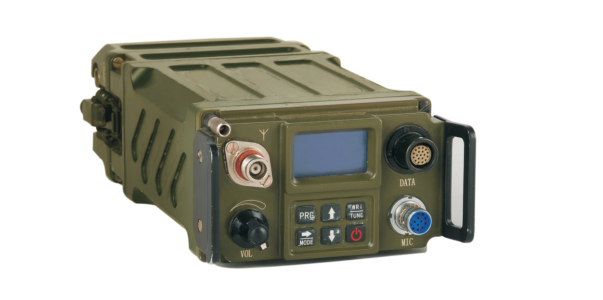

XD-D18E型10W手持式短波数字化抗干扰电台主要供班、排在山区、丛林及平原间近、中距离通信使
用。配2.4m鞭天线，通信距离10~15公里；配15m斜天线，通信距离150公里以上；配44m双极天线，通信
距离200公里以上。
该电台通过信道数字化和业务数字化，实现了通信自动化，大幅度提高了通信的质量和抗干扰能力。具有
定频、自动通信功能，可进行模拟话、声码话、数据传输业务，具有软件在线加载、加密、收发短信等功能
内置自动天线调谐器，可自动调谐各种短波天线。可配接智能手柄对电台进行各种业务的操作。
该电台采用铝合金套箱式结构，可防潮、防霉、防盐雾。具有体积小、重量轻、操作简便、性能可靠等特
点
XD-D18E 10W Handheld HF Digitalized Anti-iamming Transceiver is mainly used to perform
near, medium distance communication among squads and platoon in mountainous, iungles and plain
areas. Equipped with 2.4m whip antenna, the communication distance reach 10~15Km; and up to
150 Km when equipped with 15m slant antenna; equipped with 44m dipole antenna, the
communication distance can reach to over 200 Km.
The transceiver realized communication automatization via channel digitalization and
operation digitalization, which improved the communication quality and the anti-jamming ability in
great extent. It has the functions of fixed frequency, hopping frequency, automatic communication,
online software loading, encryption and Rx/Tx short message etc. which can perform the operation
for analog voice, digital voice and data transmission as well as the functions of on line software
loading, encryption Rx/Tx short message. There is built-in automatic antenna tuner to accomplish
automatic tuning of every kind of HF antennas. Intelligent handset can be equipped to perform all
the operation for radio set.
It adopts aluminum alloy casing to be moisture-proof, antimildew and anti-saltfog. It has the
features of small size, light weight, easy operation and high reliability.
主要指标 Main Specifications
1整机性能
1 Specifications of the transceiver
• 频率范围：2.0000MHz~29.9999MHz
•Frequency range: 2.0000MHz~29.9999MHz
•调制方式:USB、LSB、CW
•Modulation modes: USB. LSB, CW
•最大频率误差：±30Hz
•Relative max. frequency error:±30Hz
•电源：
DC 14.4x(1±10%)V
•功耗：
Power supply: DC 14.4×(1±10%)V
收信状态不大于5.8W、发信状态不大于44W
Power consumption: Rx:<5.8W.Tx:<44W
•外形尺寸：
•Dimensions: 112 mm(W)×168 mm(D)×70 mm(H)
112mm(W)×168mm(D)×70 mm(H)(主机)
Weight:<1.8kg(main set)
·重量：
1.8kg（主机）
2 Specifications of the transmitter
2 发信机性能
• Output：10W
•功率：
10W
• Inter-modulation distortion: ≤-25dB
•互调失真：
-25dB
Unwanted sideband rejection:-50dB
•无用边带抑制：-50dB
•载波抑制：
-50dB
Carrier rejection: ≤-50dB
3接收机性能
3 Specifications of the receiver
• Sensitivity:USB, LSB<1.0μV(S+N/N=12dB)
•灵敏度：USB、LSB<1.0μV(S+N/N=12dB)
CW<0.5μV(S+N/N=12dB)
CW=0.5μV(S+N/N=12dB)
IF suppression:80 dB
中频抑制：=80dB
Image suppression:≥80 dB
•像频抑制：=80dB
of300Hz~3000Hz
• Audio response: audio output variation 3dB in the ra
•音频响应：
Total harmonic distortion coefficient: ~3%
300Hz~3000Hz内音频输出变化=3dB
4Auotmation communication performance
•谐波总失真系数：=3%
Conform to standard MIL-STD-188-141B
4自动通信性能
5 Hopping frequency performance
• 符合MIL-STD-188-141B标准
5 跳频性能
•Hopping rate: 5hops/s, 10hops/s, 20hops/s selectable
•跳速：
5hop/s、10hop/s、20hop/s可选
Network establishment ability: asynchronous netwo
•组网能力：异步网，具有迟入网能力
with late access ability.
6 声码话性能
6 Coded voice performance
•话音编码速率：600bits/s
Voice encoding rate:600bits/s
7 数据传输性能
7 Data transmission performance
·速率：
75/150/300/600/1200/2400bps
Rate:75/150/300/600/1200/2400bps
•纠错方式：ARQ、FEC
Error code correction mode: ARQ, FEC
8加密性能（选配）
8 Eneryption performance (Optional)
•算法：
AES
• Algorithm: AES
密钥量：
2mg
Key amount:2
