概述 GENERAL
WJS-1型综合接入与交换设备具有数字交
换、无线接入、远距中继、灵活组网等特点，并
支持话音与数据通信业务。本设备功能全面、性
能可靠、布设迅速、使用方便，可广泛应用于各
级基地指挥所、机动指挥所（车载）、前沿作战
分队、海岸台站、作战舰队等多种战役、战术通
信环境，是理想的军用或专用集成通信平台。
WJS-I采用总线化、模块化设计，具有强大
的扩展能力，可以根据用户要求，灵活增加或删
减相应用户数量，满足用户特定需要。

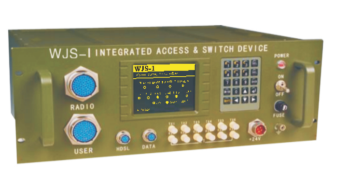

WJS-1 Integrated Access & Switch Device has the
features of digital switch, radio access, long distance
repeating, and flexible in network establishment, etc.. It
supports both voice and data communication operation.
The device has full functions like high performance, rapid
installation, convenient operation. It can be widely used
in various battle and tactical communication
environments like all levels of base commanding posts,
mobile (vehicle-borne) commanding posts, front
campaigning unit, coast station, campaigning armadas.
etc. as ideal military or special purpose integrated
communication platform.
WJS-1 is designed by adopting bus line and modules
which has strong extension capability. User quantity can
be easily added or reduced according to user requirement
to meet the special need for users.
主要指标 Main Specifications
•用户数量：有线电话30个，无线电台12个
•机箱尺寸：442mm(W)×170mm(H)×360mm(D)
重
量：< 20kg
• 电源电压：DC 20V-32V
• User quantity: line telepone30 , wireless radio 12
•Dimension:442mm(W)×170mm(H)×360mm(D)
• Weight:20kg
•Power supply voltage: DC 20V-32V
主要功能 Main Functions
在现役各军兵种不同频段、不同体制的电台
（如HF与VHF）之间实现互连互通，达成话音、
数据的协同通信；用作有线与无线通信手段的转
接设备；组网通信WJS-1设备相互之间可通过中
继链路(E1_LHDSL_LFiber)构成多节点通信网
络，并可依托民用电话网等基础设施，覆盖较大
范围的使用或作战区域，为战场通信需求提供多
层次、多形式、多手段的保障能力.
Mutual connection and communication among the
radio sets in different frequency bands and systems (such
as HF and VHF) are served in different troops of military
to realize the voice and data cooperating
communication.Switching equipment among radio
communication and wire communication.Network
communication. Multi nodes communication network can
be established among WJS-1 devices, via relay link (E1.
HDSL, F:ber). Based on network, it can also cover larger
area to supply multi levels, multi types, and multil
measures of communication capability for campaign
communication.
